FiberCore OTB 2 Port Fiber Plate Loaded
Type A

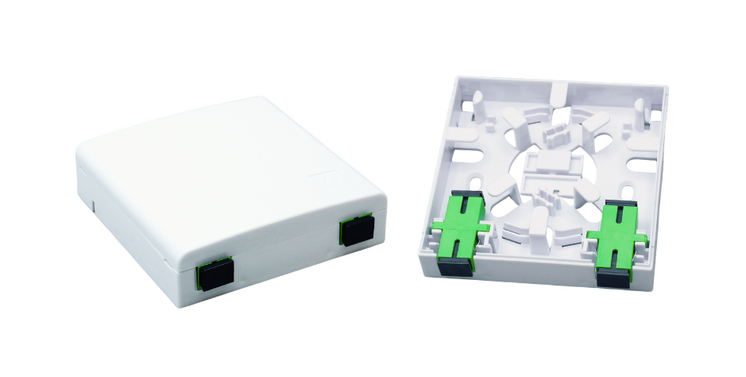

The FiberCore OTB 2-Port Fiber Face Plate (Loaded Type A) is a compact indoor termination solution designed for clean and efficient fiber connectivity at the user end. Built with durable, flame-retardant ABS material, it integrates fiber splicing, patching, and cable management into a single unit. Supporting up to two SC simplex or LC duplex adapters, this wall-mountable face plate provides a neat, space-saving solution for structured cabling environments.


Product Highlights:

  • Compact 2-port fiber face plate for clean indoor installations.
  • Supports SC simplex or LC duplex adapters for flexible connectivity.
  • All-in-one design for splicing, patching, and fiber storage.
  • Durable, flame-retardant ABS construction for long-term reliability.
  • Easy wall mounting with screw or adhesive options.
  • Built-in bend radius protection for organized cable management.
  • Space-saving 86×86 mm form factor for modern structured cabling setups.


Product Features:

  • Compact and lightweight design for indoor fiber terminations.
  • High-quality ABS plastic construction, flame-retardant and durable.
  • Supports up to 2 adapters (SC simplex or LC duplex).
  • Integrated fiber splicing, patching, and storage in one unit.
  • Wall-mount installation with screw or adhesive options.
  • Built-in cable management with bend radius protection.
  • Clean 86×86×24.2 mm form factor for space-efficient deployment.


Product Applications:

  • Fiber splice protection sleeves
  • SC/LC adapters
  • Installation Kit-(Tox and Screws)



(Scroll Below for more details)

FiberCore OTB 2 Port Fiber Plate Loaded
Type B

The FiberCore OTB 2-Port Fiber Plate (Loaded Type B) is a compact indoor fiber termination faceplate designed for efficient and reliable last-mile connectivity. Engineered to support fiber fusion, pigtail management, and cable termination, it accommodates up to two SC simplex or LC duplex adapters within a streamlined 85×85×25 mm enclosure. Built from flame-retardant ABS material and suitable for wall or floor mounting, it provides a clean, organized, and durable solution for FTTH deployments.


Product Highlights:

  • Compact 2-port fiber outlet for clean and efficient terminations.
  • Supports both SC simplex and LC duplex adapter configurations.
  • Integrated solution for splicing, patching, and fiber storage.
  • Durable, flame-retardant ABS construction for indoor safety.
  • Quick and flexible installation (wall-mounted via screw or adhesive).
  • Optimized cable routing with built-in bend radius protection.
  • Ideal for FTTH and last-mile fiber deployments.


Product Features:

  • Supports up to 2 fiber adapters (SC simplex or LC duplex).
  • Compact 85×85×25 mm design for space-saving installations.
  • Constructed from high-quality, flame-retardant ABS plastic.
  • Integrated support for fiber splicing, patching, and storage.
  • Designed for easy wall mounting via screw or adhesive options.
  • Effective cable management with proper bend radius protection.
  • Lightweight yet durable for long-term indoor applications.


Product Applications:

  • Fiber splice protection sleeves
  • SC/LC adapters
  • Installation Kit-(Tox and Screws)



(Scroll Below for more details)
